KAD 4 Pot Rear Disc Conversion Kit (For Hydraulic Handbrake)

  • Sale
  • Regular price £981.67


  • £1,178.00

    including VAT.



The KAD 4 Pot Rear Disc Conversion Kit is specifically designed with Autotest Mini owners in mind. This kit gives you the ability to use one pair of pistons on a separate circuit for the use of a hydraulic handbrake, whilst using the other pair of pistons for conventional rear braking on the normal braking circuit. These calipers take a modified conventional 4 Pot brake pad (not included). The kit will fit under a 10" Minilite wheel.

3/8" UNF brake pipe fitting (banjo type only).

The kit comes complete with the billet aluminium carrier brackets and all the necessary bolts to fit onto the KAD Swing Arms.

Not suitable for road use due to MOT Test Regulations.

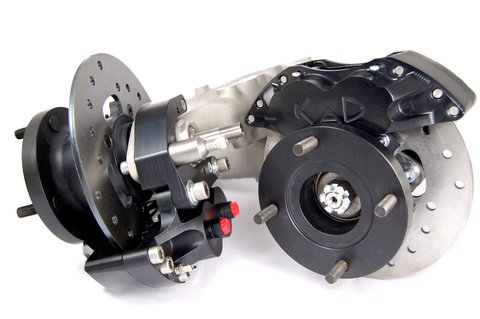

These calipers are to be fitted on the vehicle underslung as per the example on the left-hand side of the image.

NOTE: The kit does not include the Rear Swing Arms, they are shown fitted to the arms for illustration purposes only.

NOTE: The discs are no longer supplied with holes in, they are plain faced.
